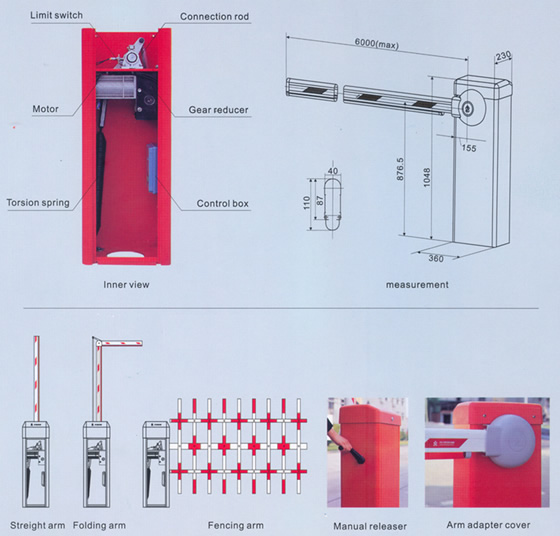

Automatic Barrier Gate

Automatic Barrier Gate
Product name:Automatic Barrier Gate
Item:DC535Y, DC655Y
Advanced Features
  • Compact design, attractive appearance, safe and reliable performance.
  • Self-lock electromechanical gearmotor.
  • Built-in control panel.
  • Adjustable balancing system.
  • Auto-stop function if hits obstruction.
  • Folding or Fencing arm is available.
  • Built-in release system in case of power failure.
  • Connections for ticket dispenser, photocell, alarm lamp, loop detector, etc.
Technical data
Model DC535Y DC655Y
Opening Time 3.5sec 5.5sec
Arm Length 3m~5m (standard) 5m~6m(standard)
Power Supply 220~240V, 110~120V
Motor Speed 1400r/min
Motor Output Power  180W
Working Temperature -20ºC~+50ºC
