Automatic Barrier Gate

Automatic Barrier Gate

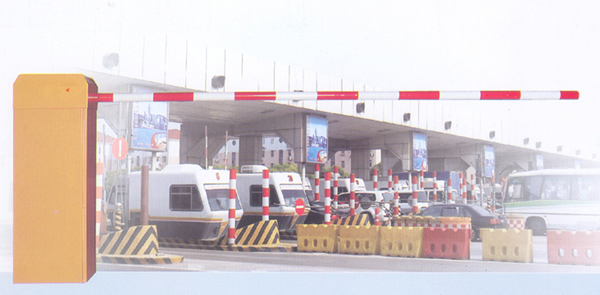

Product name:Automatic Barrier Gate
Item:DC315Y, DC420Y
Details:
Advanced Features
  • Compact design, attractive appearance, safe and reliable performance.
  • Self-lock electromechanical gearmotor.
  • Built-in control panel.
  • Proximity limit switch
  • Adjustable balancing system.
  • Auto-stop function if hits obstruction.
  • Folding or Fencing arm is available.
  • Built-in release system in case of power failure.
  • Connections for ticket dispenser, photocell, alarm lamp, loop detector, etc.
Technical data
Model DC315Y DC410Y
Opening Time 1.5sec 2.2sec
Arm Length 3~3.4m 4.4m
Power Supply 220~240V, 110~120V
Motor Speed 960rpm
Output Power  150W
Working Temperature -20ºC~+50ºC
Installation
