Automatic Garage Door

Automatic Garage Door

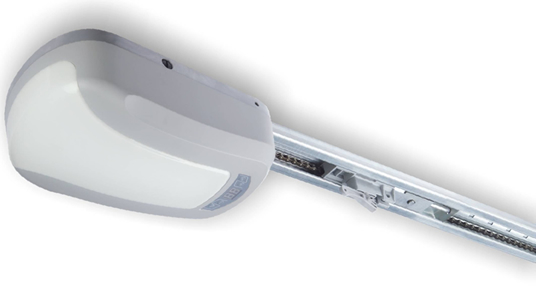

Product name:Automatic Garage Door
Item:FBC120, FBC200

Advanced Features

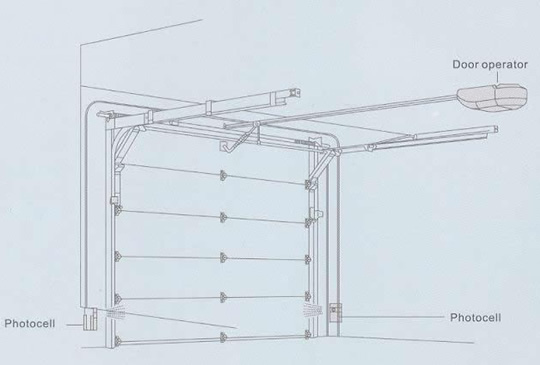

  • The door operator is designed for garage door.
  • The control unit regulates all the necessary functions such as automatic lighting control, automatic memory, automatic close, automatic reverse and photocell protection etc., extremely quiet and smooth operation.
  • Courtesy light will turns on in using and turns off after 3 minutes.
  • The operator memorizes the limit positions and unique braking system that slows the unit down at the end of its travel. Soft start and soft stop control guarantees extremely smooth and quiet operation.
  • Automatic reversion on obstruction during closing procedure.
  • The controller has a security LOCK function which prevents operation of the door from transmitter.
  • In the event of power failure, the release device makes it possible to open and close the door manually.
  • Smart controller and encoder system. Hopping code remote control with max. 100 pcs hand transmitters.
  • Battery, button switch, infrared photocell and alarm lamp are optional.
Technical data
Model       FBC120                     FBC180                 FBC200
 Motor Power     24V DC 60W                24V DC 80W          24V DC 100W
Power Supply  220~240V, 110~120V
Lifting Capacity 600N                        800N 1000N
 Remote Control    Rolling code 433.92mHz
Steel Guide Rail Length 3.3m (standard)
