Automatic Swing Gate

Automatic Swing Gate

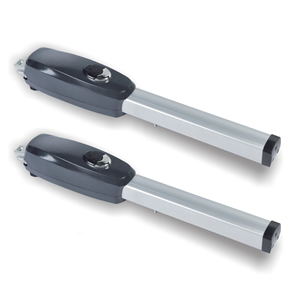

Product name:Automatic Swing Gate
Advanced Features
  • Aluminum body, quality painted
  • Auto-close, auto-stop & auto-reverse
  • Manual release key in case of power failure
  • Built-in mechanical limit switch for adjustment easy
  • Supply terminals for electric lock, button switch, photocell, lamp, etc.

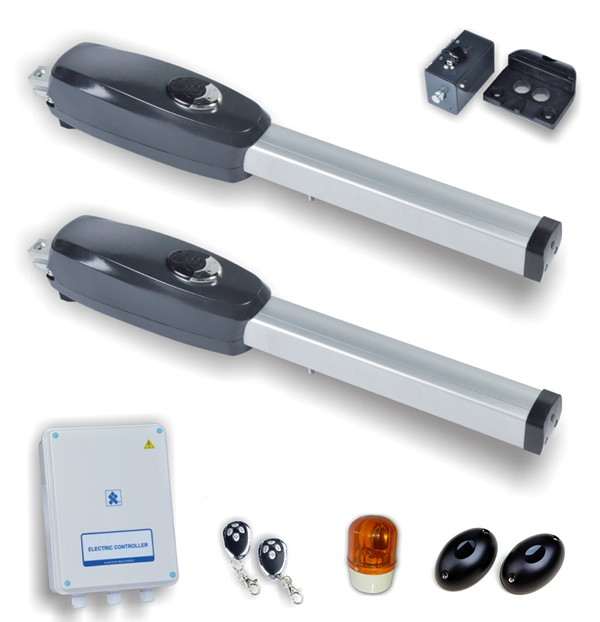

  • Easy installation, full fitting accessories and user's manual are provided in motor kits
Technical data
 Model  ZK1800   Zk1800U
Power Supply 220-240V  110-127V
Rate Power  AC motor 180W
Rated/Max. Force  1800N / 3000N
Max. Gate Weight  350 kg/leaf
Max. Gate Width  3.5 m/leaf
Open/Closing Time 18 sec.
 Working Temperature -20ºC~+50ºC

Standard state and Optional
