Automatic Sliding Gate

Automatic Sliding Gate
Product name:Automatic Sliding Gate
Item:DKC300, 280 (Not Sell)
Advanced Features
  • 12V DC motor
  • Build-in control board, backup battery
  • Auto-reverse in the event of obstruction
  • Auto-close time 0-45 seconds adjustable
  • Manual release key in case of power failure
  • Connecting with solar panel is available

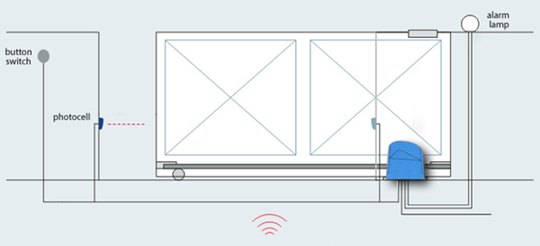

  • Terminals for button switch, photocell, lamp, etc.

Technical data

Model  DKC300DC (Not Sell)  DKC280DC (Not Sell)
 Motor Power 12V DC 100W   12V DC 150W
Power Supply 220~240V, 110~120V
Backup Battery 12V 7Ah
 Output Torque Max. 7N·m
 Gate Speed 9m/min  16m/min
 Limit Switch Mechanical limit switch  Magnetic limit switch
 Remote Control  Rolling code 433.92mHz
 Max. Gate Weight 300KG

DKC400W, DKC400WY for sliding gate weight upto 500kg
DKC400, DKC400Y for sliding gate weight upto 600kg
L200, L200Y, L200FY for sliding gate weight upto 800~1200kg
←[Previous:DKL300DC (Not Sell)]
